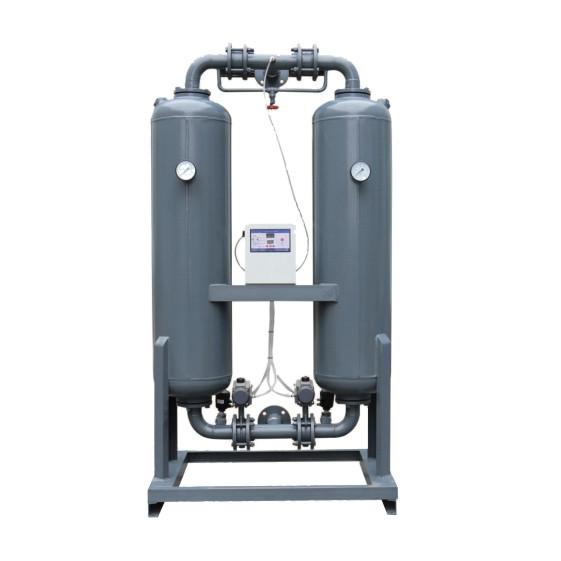

Heatless Adsorption Dryer For Screw Air Compressor

Product introduction

Non-thermal regeneration adsorption dryer is a dehumidification purification device based on the principle of pressure swing adsorption, using non-thermal regeneration method (without external heat source) to adsorb and dry compressed air.
Non-heat regeneration adsorption dryer (hereinafter referred to as non-heat drying machine), is the company carefully designed, developed into a high-quality model. Under normal operating conditions, the dew point of the air (under pressure) can be reduced to below -40 ° C, and the minimum can reach -70 ° C. It can provide oil-free and water-free high-quality compressed air for a small number of applications with high requirements for air quality, especially for cold areas and other ambient temperatures below 0℃.
Non-heat drying machine adopts two tower structure, one tower adsorbs water in the air under a certain pressure, the other tower uses a small part of dry air slightly higher than atmospheric pressure to regenerate the desiccant in the adsorption tower, after a certain time, the two towers switch to ensure the continuous supply of dry compressed air.
Unique computer control system, intuitive display of the drying machine running status, and with multiple alarm, protection functions and DCS remote control interface.
The actuator adopts pneumatic Angle seat valve and pneumatic butterfly valve, and the pneumatic control system adopts deep dry air source and then filtered to ensure reliable operation and avoid valve leakage.
The height and diameter of the adsorption tower are precisely calculated and the experimental results show that important parameters such as flow rate and heat and mass transfer are really mastered, so as to avoid the excessive wear and tunnel effect of the adsorbent.
Professional program control design, air pulse and air pressure fluctuation is small, effectively reduce the outlet gas dust and recycled air noise.
Convenient and practical cycle time mode and energy-saving economic mode, renewable gas volume, time program can be adjusted to meet various actual use conditions and export dew point requirements.
The support base is stable and beautiful, easy to install, use and maintain.

Product parameter

Compressed air inlet temperature:2~45°C
Compressed air pressure: 0.7MPa, up to 1.0MPa (higher pressure can be customized
Pressure dew point: -20 ℃ (-40 ℃ dew point can be customized)
Intake oil content: 0.08ppm (0.1mg/m)
Dust particle size of finished gas:60μm
Average recombination gas flow: 10%~22% of rated gas flow
Adsorbent: activated alumina (molecular sieves are available for higher requirements)
Pressure drop: 0.025MPa (under 0.7MPa inlet pressure)
Regeneration method: normal temperature regeneration
Working mode: automatic switching between two towers in 4min or 10min, continuous work
Control mode: cycle 4~10min adjustable
Installation method: indoor, allowing installation without foundation

Product photo

Jufeng compressor was established in 2000 and has 24 years of experience in the air compressor industry. It's an innovative factory which integrates production, trade, service,research and development. We focus on research, development and manufacture screw air compressors of world's newest energy-saving and intelligent internet information system with the industry's top technology and elite engineering team.

Products include:

• Oil-injected screw air compressor (7.5~630kw)

• Oil-free screw air compressor (7.5~ 400kw)

• Integrated screw air compressor for fiber laser cutting applications

• 3 to 5 bar Low pressure screw air compressor (7.5~400kw)

We has three workshops：

Air-end workshop

Sheet metal workshop

Assembly workshop

The air-end workshop has two world-advanced rotor grinding machines, two three-coordinate testing instruments, one fully automatic machining center and eight semi-automatic machining centers.

The company has obtained ISO9001, EU CE certification, CLASS 0 oil-free certification, German TUV certification, and obtained more than 30 patent certificates. In 2021, we were awarded the title of Excellent Enterprise in Science and Technology Innovation. In 2022, we were rated as "High-tech Enterprise" and etc. We have our own energy efficiency laboratory.

Our factory is located in Wuxi City, Jiangsu Province, adjacent to Shanghai. We have more than 200 skilled employees and 30 engineers, and we are very strict in every step of manufacturing. The company has a professional trading subsidiary in Shanghai, China. The company conducts brand promotion and service in the global market. Now, our valued customers are located in more than 120 countries.

Jufeng's goal is to become a world-renowned high-end brand, with sustainable development, continuously improve its own value, and it is committed to provide our customers with energy-saving products
