PM VSD Screw Type Compressor Rotorcomp All In One Air Compressor With Air Tank
Integrated screw compressors offer the following major advantages:
1. Compact design: The integrated screw compressor integrates the
compressor, motor and cooling unit in a compact housing, reducing
equipment space and facilitating installation and maintenance.
2. High performance: Advanced screw design and optimized airflow
channels enable integrated screw compressors to work at high
efficiency, thereby reducing operating costs.
3. High reliability: The overall design considers the coordination
of various parts of the compressor, improving the reliability and
service life of the whole machine.
4. Easy maintenance: Through reasonable shell design, regular
inspection and maintenance can be easily carried out, reducing
maintenance costs.
5. Energy saving and environmental protection: The optimized
airflow channel and efficient motor design make the integrated
screw compressor have lower energy consumption under the same
working conditions, which is conducive to energy saving and
emission reduction.
6. Flexible application: The integrated design is suitable for
various working conditions and application scenarios, such as
industrial refrigeration, air compression and other fields, to meet
the needs of different users.
In general, the integrated screw compressor has outstanding
advantages in compact design, high energy efficiency and strong
reliability, and is widely used in industrial refrigeration, air
compression and other fields.
Product parameter
Model | JM-10AT |
Capacity | 1.1m³/min |
Working pressure | 7-12bar |
Air end | Jufeng |
Transmission mode | Belt drive or direct drive |
Cooling method | Air cooled or water-cooled |
Motor | 380v/50hz/3phase, IP23/IP54 |
Exhaust temperature | Ambient temperature +15℃ |
Noise | ≤ 65 dB(A) |
Outlet size | G3/4” |
Gas tank | 200L |
Cold dryer voltage | 220v/50/1phase |
Air dryer | 16bar/2.4m³/2-10℃ |
Filter | 16bar/2.8m3/4 pcs, particle content≤0.01μm,oil content≤0.003PPM |
Size | 1960*820*1600mm |

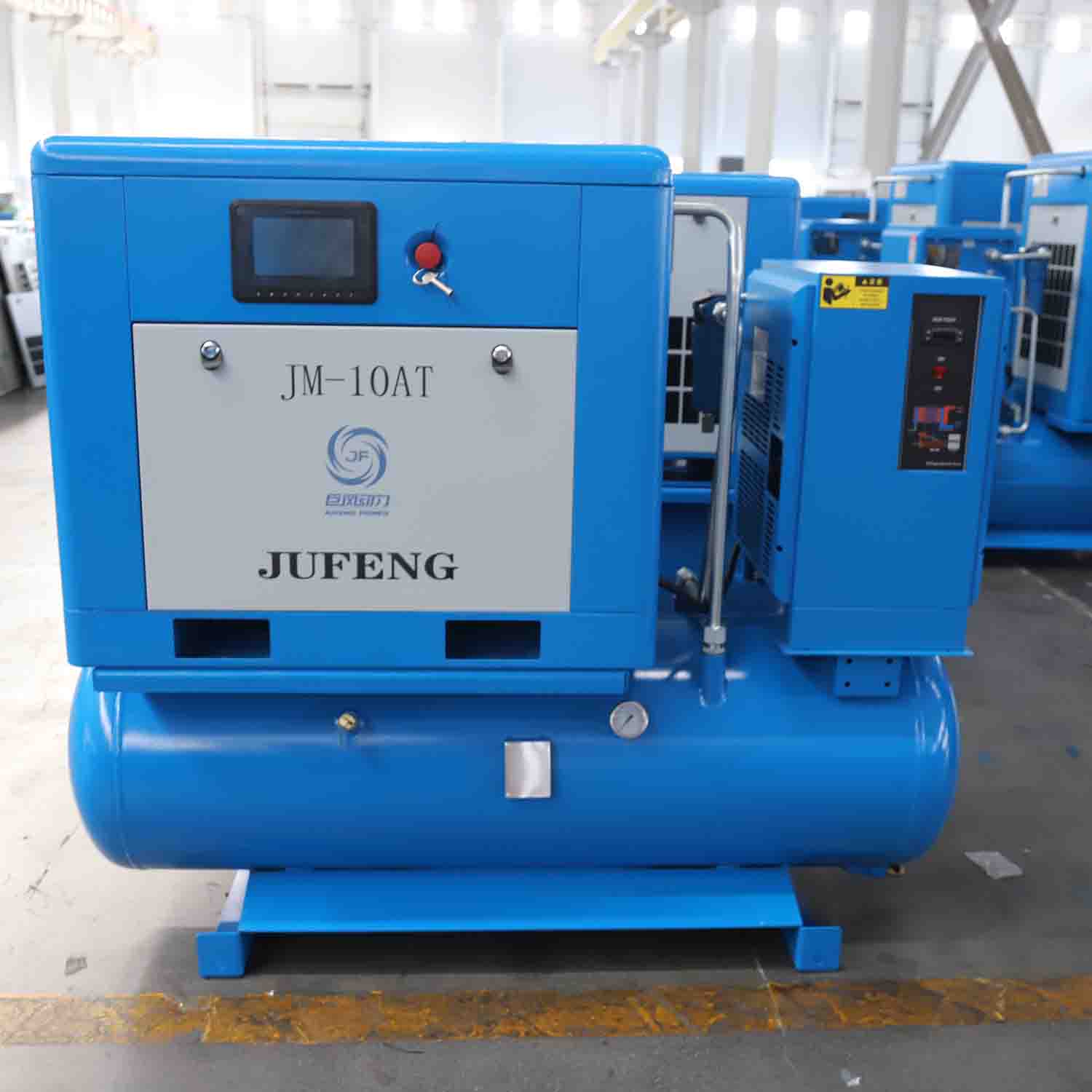

Product photos
![]() |
