420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure

Jiangsu Jufeng Machinery Manufacturing Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure from wholesalers

    Buy cheap 420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure from wholesalers
    • Buy cheap 420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure from wholesalers
    • Buy cheap 420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure from wholesalers
    • Buy cheap 420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure from wholesalers

    420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure

    Ask Lasest Price
    Brand Name : Jufeng
    Model Number : WGD420
    Certification : ISO900, ISO14001, CE, GC, etc.
    Price : contact us
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

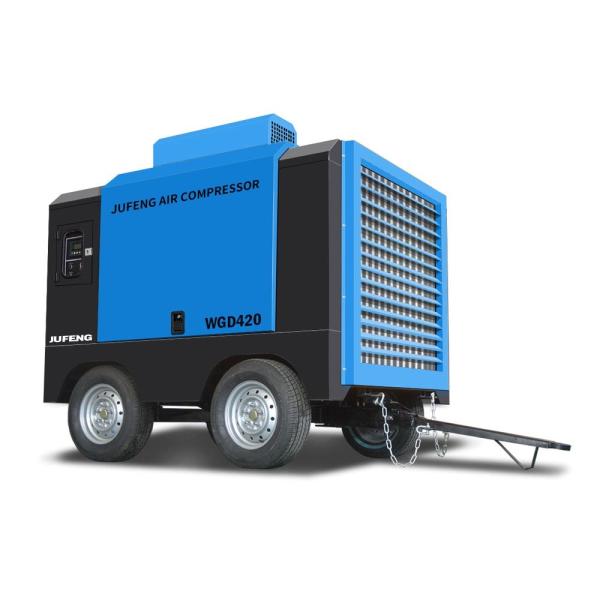

    420 Cfm Mobile Diesel Screw Air Compressor 10 - 12 Bar Working Pressure

    420 Cfm Mobile Diesel Screw Air Commpressor

    The WGD420 model air compressor is powered with one 118kW/160hp diesel engine which can produce compressed air of 400-460cfm @ 10-12 bar pressure.

    Both portable and skid version are available.

    This unit is controlled through an intuitive intelligent LCD digita!display that is carefully protected behind a cabinet door. This digitaldisplay allows you to see all the functionalities of what the dieselscrew compressor is doing with live feedback. From the RPM of theengine,pressure range delivering, fuel consumption, service hoursrun time and much more.The P420D has been designed with three air outlets making iteasy to either to regulate one outlet for air tools and then havedirect pressure for blow downs or tyre inflation.

    Product features

    • Water cooled EngineDiesel engine will idle when pressure reached
    • Huge dual air intake filters
    • Fuel filter with sight glass
    • Backlit LCD control panel
    • Automated fault finding and recording
    • Sound dampening cabinet
    • Storage battery included

    Product parameters

    ModelFree air delivery(cfm)MakePowerFull load speedOff load running speedFuel tank capacity(L)Weight(kg)OutletLxWxH(mm)

    100

    psi

    116

    psi

    145

    psi

    174

    psi

    800150
    WGD420460420YUCHAI16022002200

    1x3/4" 1x1-1/2"

    1x1"

    3000x1670x2200
    SKID18002260x1670x1700

    Product Details

    160HP 4-Cylinder Diesel Engine
    The 420 cfm diesel air compressor has an impressive 160Hp, 4-cylinder direct injected diesel engine which drives a huge air end delivering 420 cfm of free air delivery at 10 bar.A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.
    Reliable Air End
    Reliable air end produce 420 cfm free air delivery at 10 bar pressure.Equiped with high quality bearing to prolong its service time and maintenance time.
    Smart Controller
    This unit is controlled through an intuitive intelligent LCD digital display that is carefully protected behind a cabinet door. This digital display allows you to see all the functionalities of what the diesel screw compressor is doing with live feedback. From the RPM of the engine, pressure range delivering, fuel consumption. service hours, run time and much more.
    Heavy duty dual air filter
    Heavy duty dual air filters avoid impurity coming into compressor element and engine motor, to gurantee it can be used in harsh envirionment.
