37kw 185 cfm Diesel Screw Air Compressor

The JF-185 model air compressor is powered with one 37kW/50hp diesel engine which can produce compressed air of 150-185cfm @ 7-10 bar pressure.
185cfm model is our most popular diesel compressor in our company.With charactors of stable and economical , it is a good helper for construction and mining purpose.
Both portable and skid version are available.

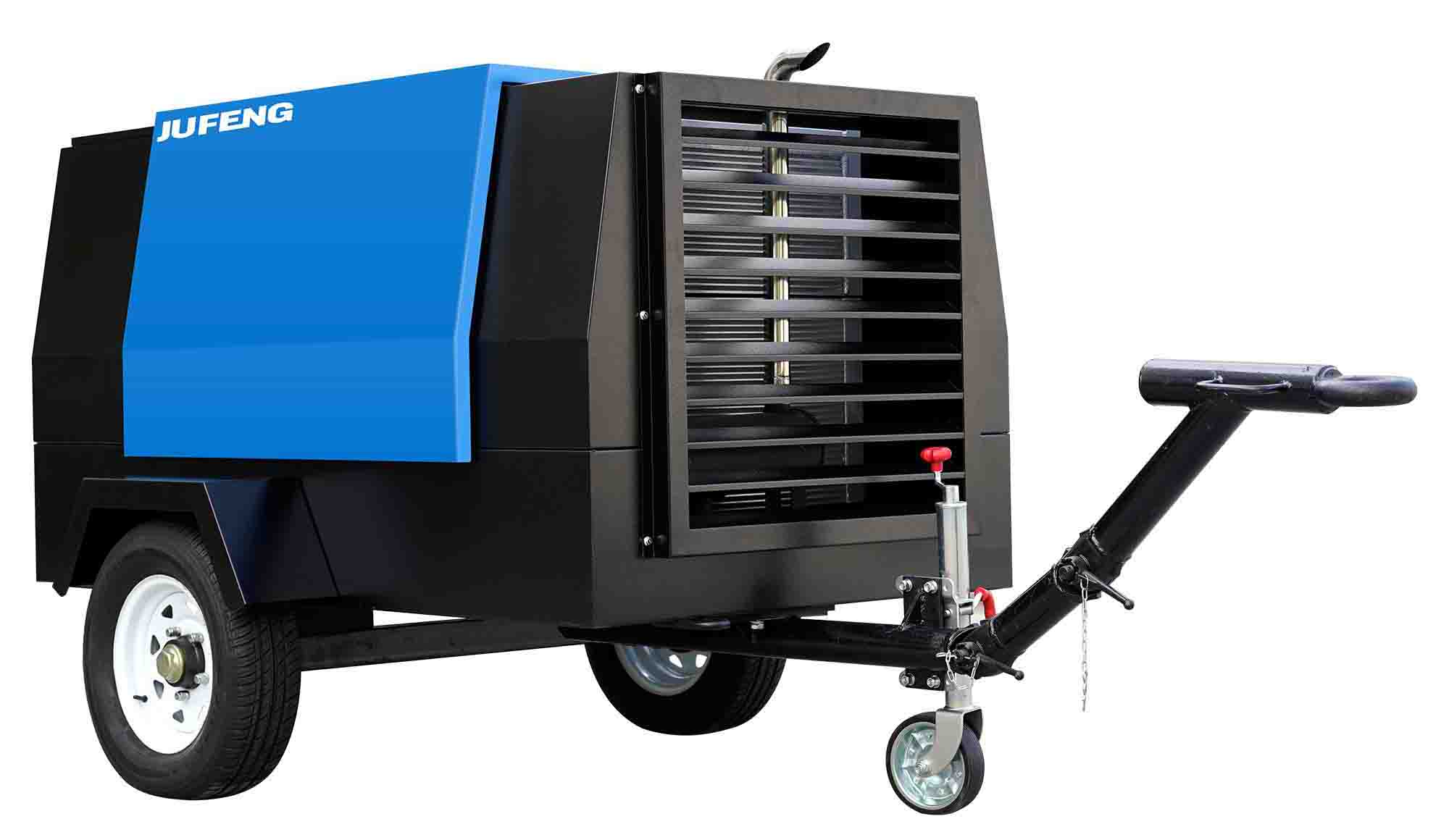

JF-185 Portable Air Compressor
JF-185 is a popular model from Jufeng comapny, an efficiency range of oil injected, rotary screw compressors. Driven by a powerful 4-cylinder Xichai diesel engine, it provides reliable compressed air for different applications.

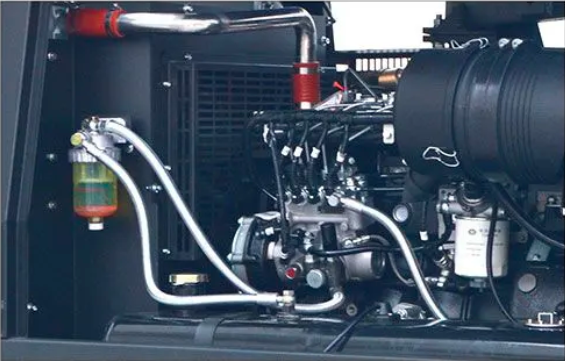

Reliable Xichai Engine
Powered by a 50hp Xichai engine which work with a efficiency air end, to ensure 185 cfm productivity at 7 bar pressure. Xichai engine is economical ,reliable . and durable. Enlarged cooling system can ensure compressor to work under harsh environment.


Smart Controller
The smart controller can realize functions of compressor start/stop.data measurement,maintenance, alarm protection, and "threeremotes". It has speed regulator function, and CANBUS (SAE J1939) port which can control various ECU or non-ECU diesel driven compressor.
The JF-185 diesel screw air has an impressive 50HP, 4 cylinder-direct injected diesel engine which drives a huge air end delivering 185cfm of free air delivery.
A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.
This unit is controlled through an intutive intelligent LCD digital display that is carefully protected behind a cabinet door.

This digital display allows you to see all the functionalities of what the diesel screw compressor is doing with live feedback.

From the RPM of the engine, pressure range delivering. fuel consumption, service hours,run time and much more. Just like all our other engine driven air compressors will rev up when the air demand is required and when idle back.

When pressure has been reached. We have also implemented the air compressor to have an battery insolation switch which is located inside the lockable doors.

The JF-185 has been designed with twin air outlets making it easy to either to regulate one outlet for air tools and when have direct pressure for blow downs or tyre inflation.

Features & Benefits

• Water cooled engine
• Coupling driven
• Huge air intake filters that are easily accessible formaintenance or replacingFuel filter with sight glass for easy identification
• LCD control panel
• Twin air outlet
• Ease of servicing with easy access partsLockable panels with pneumatic support
• Battery isolator switch
• lsolating switch at control panelDiesel engine will idle when pressure reached
• Sound proofed cabinet
• Low diesel consumption
• Automated fault finding and recordingStorage battery included

Product parameters

Jufeng compressor was established in 2000 and has 24 years of experience in the air compressor industry. It's an innovative factory which integrates production, trade, service,research and development. We focus on research, development and manufacture screw air compressors of world's newest energy-saving and intelligent internet information system with the industry's top technology and elite engineering team.

Products include:

• Oil-injected screw air compressor (7.5~630kw)

• Oil-free screw air compressor (7.5~ 400kw)

• Integrated screw air compressor for fiber laser cutting applications

• 3 to 5 bar Low pressure screw air compressor (7.5~400kw)

We has three workshops：

Air-end workshop

Sheet metal workshop

Assembly workshop

The air-end workshop has two world-advanced rotor grinding machines, two three-coordinate testing instruments, one fully automatic machining center and eight semi-automatic machining centers.

The company has obtained ISO9001, EU CE certification, CLASS 0 oil-free certification, German TUV certification, and obtained more than 30 patent certificates. In 2021, we were awarded the title of Excellent Enterprise in Science and Technology Innovation. In 2022, we were rated as "High-tech Enterprise" and etc. We have our own energy efficiency laboratory.

Our factory is located in Wuxi City, Jiangsu Province, adjacent to Shanghai. We have more than 200 skilled employees and 30 engineers, and we are very strict in every step of manufacturing. The company has a professional trading subsidiary in Shanghai, China. The company conducts brand promotion and service in the global market. Now, our valued customers are located in more than 120 countries.

Jufeng's goal is to become a world-renowned high-end brand, with sustainable development, continuously improve its own value, and it is committed to provide our customers with energy-saving products
