    20/30/40 Bar Middle High Pressure Screw Air Compressor with 30 37-55 75 kW Motor Power 2.0-5.8 m3/min

    Ask Lasest Price
    Brand Name : Jufeng
    Model Number : JH-90AHV~JH-175AHV
    Certification : ISO900, ISO14001, CE, GC, etc.
    Price : contact us
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    20/30/40 Bar Middle High Pressure Screw Air Compressor with 30 37-55 75 kW Motor Power 2.0-5.8 m3/min

    20/30/40 Bar Middle High Air Pressure Compressor 70HP-175HP Screw Air Compressor


    Product advantage

    Compared with the piston air compressor, the noise is lower, the vibration is smaller, the displacement loss is small, and the air source quality is higher. Full series of matching air cooling cooling system, no need to install cooling tower, no need to install foundation, simple and convenient installation.
    Replace traditional asynchronous motors with more efficient PM synchronous motors. PM FC control, smooth start, small impact on the power grid.
    It can achieve 30%~100% FC constant voltage control, reduce no-load, can achieve energy saving of more than 25%. The compression system
    comes with efficient stainless steel freeze-dryer, and the dew point of the discharged compressed airis about 5-7%.

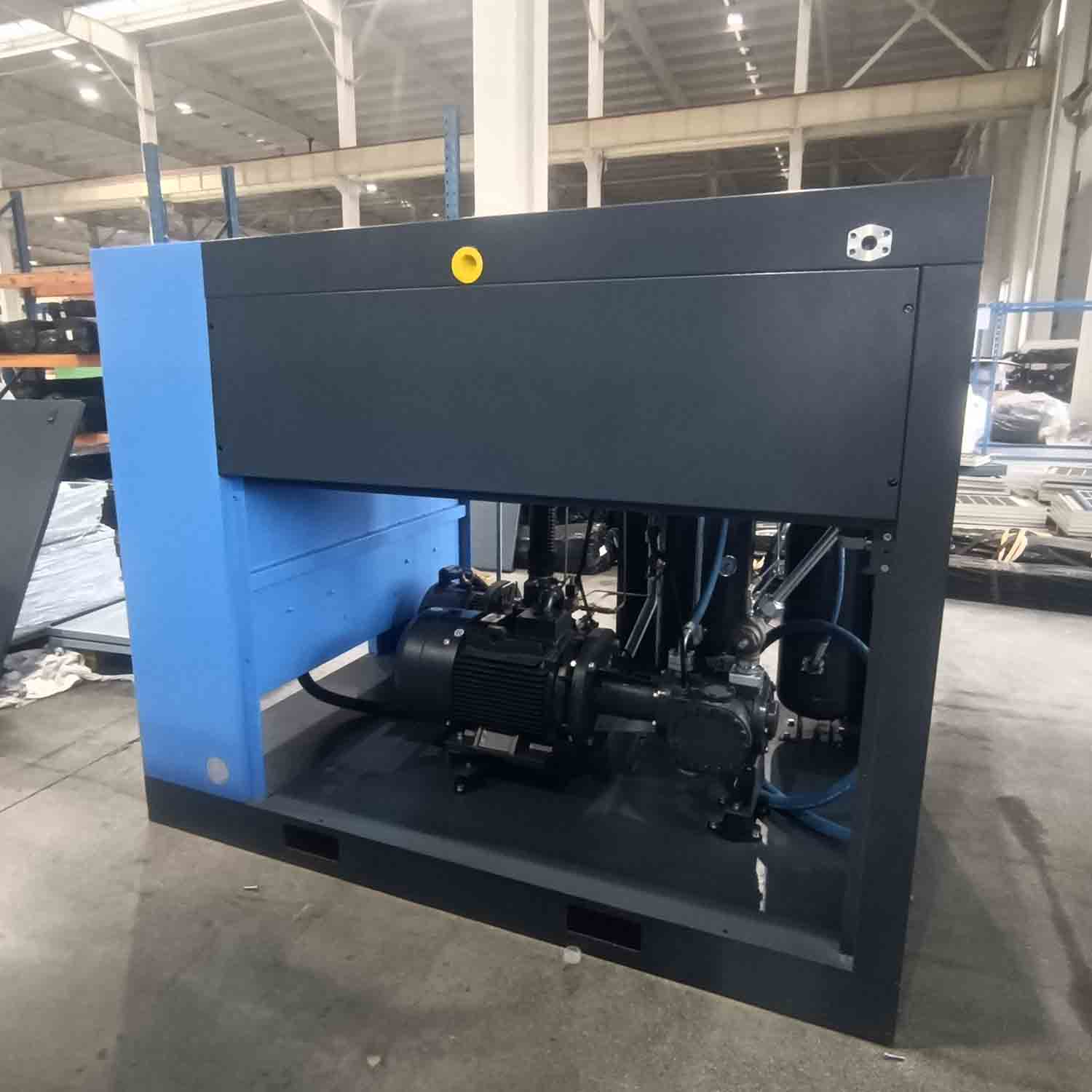

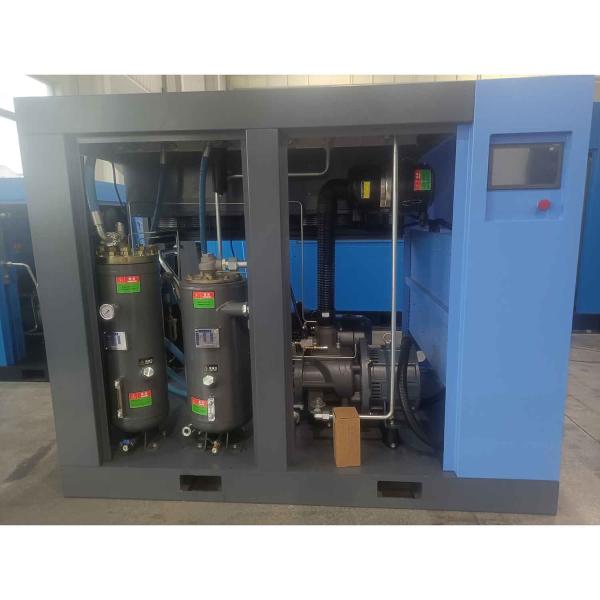

    Product picture

    Product parameter

    ModelPower(KW)Exhaust VolumePressureDimension(L*W*H)Weight(KG)Cooling MethodNoiseAir Outlet Pipe DiameterStart Mode
    JH-70AHV22+302.0~4.52.01800*1200*15001080Air cooling69±2DN20Frequency
    conversion
    2.0~4.32.5
    1.9~4.23.0
    1.7~3.94.0
    JH-90AHV30+372.6-5.82.02070*1350*16501380Air cooling72±2DN25Frequency
    conversion
    2.5-5.62.5
    2.4-5.43.0
    2.2-5.04.0
    JH-110AHV37+453.2~7.12.02070*1350*16501420Air cooling73±2DN25Frequency
    conversion
    3.1~6.82.5
    3.0~6.63.0
    2.7~6.14.0
    JH-135AHV45+553.9~8.72.02700*1800*19501950Air cooling75±2DN40Frequency
    conversion
    3.8~8.32.5
    3.6~8.03.0
    3.3~7.44.0
    JH-175AHV55+755.1~11.32.02700*1800*19502220Air cooling76±2DN40Frequency
    conversion
    4.9~10.82.5
    4.7~10.43.0
    4.3~9.64.0
